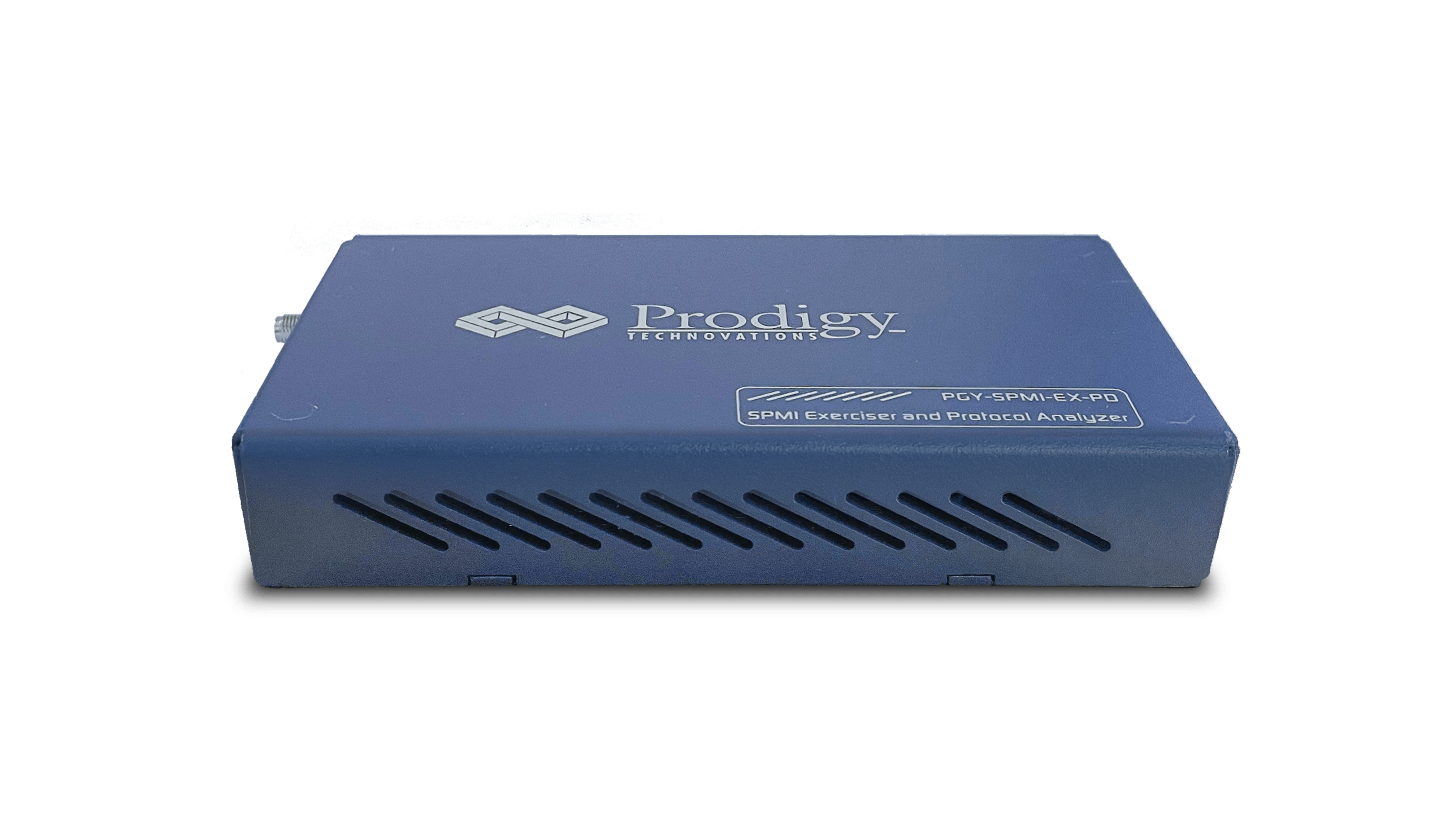

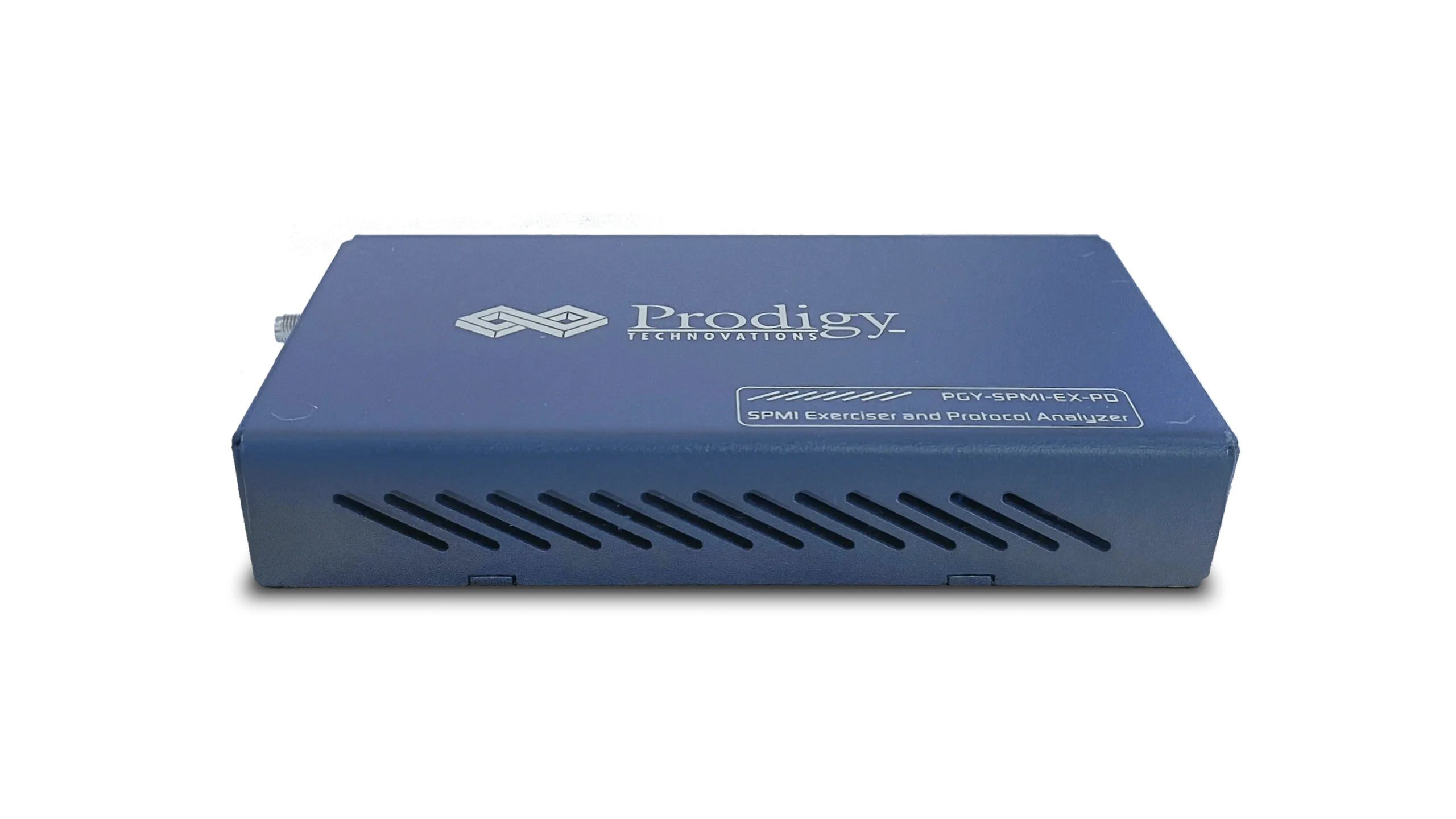

PGY-SPMI-EX-PD SPMI Protocol Exerciser and Analyzer

SPMI Protocol Analyzer(PGY-SPMI-EX-PD) is the Protocol Analyzer with multiple features to capture and debug communication between host and design under test. SPMI (System Power Management Interface) is a MIPI (Mobile Industry Processor Interface) standard with 2-wire synchronous serial, bidirectional interface that connects the integrated Power Controller(PC) of a System on- Chip (SoC) processor system with one or more Power Management Integrated Circuits (PMIC) voltage regulation systems.

PGY-SPMI-EX-PD is the leading instrument that enables the design and test engineers to test the SPMI designs for its specifications by configuring PGY-SPMI-EX-ED as master/slave, generating SPMI traffic with time variation and error injection capability and decoding SPMI Protocol packets.

PGY-SPMI-EX-PD SPMI Protocol Exerciser and Analyzer


  • Supports SPMI v 1.0/ 2.0 specifications
  • Ability to configure it as Master or Slave
  • Supports Sole Master feature
  • Supports Request Capable Slave (RCS) feature
  • Supports the complex BUS arbitration process
  • Generate different SPMI Packets
  • Error injection such as parity error, ACK/NACK error and Skip SSC error
  • Variable SPMI data speeds (32kHz – 26Mhz1), Voltage drive levels (1.2 or 1.8) and Duty Cycle (25%,50% and 75%).
  • Simultaneously generate SPMI traffic and Protocol decode of the Bus
  • Continuous streaming of protocol data to HDD/SSD
  • Timing diagram of Protocol decoded bus
  • Listing view of Protocol activity
  • Error Analysis in Protocol decoded data
  • Ability to write exerciser script to combine multiple
  • data frame generation at different data speeds
  • USB2/3 host computer interface
  • API support for automation in Python and C++
  • Flexibility to upgrade to the unit for evolving SPMI Specification
  • Optional Protocol Implementation Compliance Statement (PICS) support scripts

Multi-domain View

Multidomain View provides the complete view of SPMI Protocol activity in single GUI. User can easily setup the analyzer to generate SPMI traffic using a GUI or script. User can set different trigger conditions from the setup menu to capture Protocol activity at specific event and decode the transition between Master and Slave. The decoded results can be viewed in timing diagram and Protocol listing window with autocorrelation. This comprehensive view of information makes it industry best, offering an easy to use solution to debug the SPMI protocol activity. Continuous streaming protocol activity to host system HDD/SSD ensures seamless roll mode operation without the need to recapture data when DUT/s are set to different states thereby saving test times.


PGY-SPMI-EX-PD supports SPMI traffic generation using GUI and Script. User can generate simple traffic generation using the GUI to test the DUT. Script based GUI provides flexibility to emulate the complete expected traffic in real world including error injections. In this sample script user can generate SPMI traffic as below.

Script line #1: Reg Write to the slave with USID 06
Script line #2: Reg Read to the slave with USID 06
Script line #3: Ext Reg Write to the slave with USID 06
Script line #4: Ext Reg Read to the slave with USID 06

Timing Diagram and Protocol Listing View

Timing view provides the plot of SCKL and SDATA signals with bus diagram. Overlaying of Protocol bits on the digital timing waveform will help easy debugging of Protocol decoded data. Cursor and Zoom features will make it convenient to analyze Protocol in timing diagram for any timing errors.

Protocol window provides the decoded packet information in each state and all packet details. Selected frame in Protocol listing window will be auto correlated in timing view to view the timing information of the packet.

Powerful Trigger Capabilities

PGY-SPMI-EX-PD supports simple trigger capabilities. Analyzer can trigger on any of the Protocol packets such as Reg Write, SLEEP or WAKE UP. Advanced Trigger provides the flexibility to monitor Multiple trigger conditions and can set multiple state trigger machine.

Protocol Implementation Compliance Statement (PICS) test scripts

Optional PICS capability enables designers to test their designs for compliance as per the PICS requirement of SPMI specifications. The software provides the flexibility for designers to select 1/few/All test cases and run them automatically using this PICS feature of the product.

Supports 200+ test Id scripts.

The tests are run as per defined steps and gives a PASS/FAIL verdict for each test. This is a critical step to ensure in-house compliance testing is enabled and help the design teams to ensure their implementation is as per SPMI standards. The key outcome of this is to shorten the time to market of the products with the assurance that the design meets the SPMI PICS implementation.

A detailed report captures the PICS results with the PASS/FAIL verdict.


Configurable 1 Master + 4 Slaves
SPMI Traffic Generation Custom SPMI traffic generation
Simulate real world network traffic
SCL Frequency 32 kHz to 26 MHz1
Voltage Drive Level 1.2V1 or 1.8V
Command sequence Support All command sequence is supported except DDB master
SCLK Duty Cycle variation YES. (can be 25%, 50%, 75%)
SCLK & SDATA Delay Resolution (4ns)
Delay between two messages YES
Specification SPMI 1.0 and SPMI 2.0; PICS (v1.0 supporting v2.0
SPMI network Sole master and multi master
Error injection Master – Data parity,
– command parity,
– address parity
– Skip SSC (only in Sole master systems)Slave – Data parity (NON RCS)
Protocol Analysis:
Supports SPMI protocol decode
Protocol Views Timing Diagram View
Protocol Listing View
Bus-Diagram to display Protocol pa
ckets with timingdiagram plot
Protocol Trigger Simple (Trigger on user defined SPMI packet after SSC)
Capture Duration Continuous streaming Protocol Data
Protocol Error Report Data parity,
command parity,
address parity
ACK/ NACK error
Host Connectivity USB 3.0 / 2.0 interface

Ordering Information
PGY-SPMI-EX-PD (v 1.0): SPMI Protocol Exerciser and Analyzer (v 1.0 Specifications)
PGY-SPMI-EX-PD (v 2.0): SPMI Protocol Exerciser and Analyzer (v 2.0 Specifications)
PGY-SPMI-UPG (v 1.0 to v 2.0): SPMI Protocol Exerciser and Analyser upgrade from v 1.0
Specifications to v 2.0 Specifications.
-Opt PICS (Protocol Implementation Compliance Statement test scripts v 1.0 for 2.0 SPMI

Deliverables for PGY-SPMI-EX-PD
USB3.0 cable
PGY-SPMI-EX-PD Software in CD
12V DC adopter
Flying lead probe cable with female connector to connect to DUT

Dimension: ( L- 157mm ; W- 90mm ; H-27mm )
