- SPMI Electrical Validation and protocol Analysis using oscilloscope live channel data or stored SPMI signals (wfm (default), h5, trc format ( with option)).
- Links the content to the electrical signal in the oscilloscope for easy understanding of the electrical characteristics of the protocol.
- Displays the decoded data in SPMI frame format
- Error checks for parity bits of command and data
- Flexibility to view Slave ID in Symbol or Hex value
- Flexibility to view decoded data in hex, binary, Decimal or octal format
- Long duration data decode support to capture more number of SPMI protocol transactions
- Search capabilities to locate protocol event
- Filter capabilities to view information of Interest
- Documentation by exporting data in CSV and TXT file format along with PDF Report Generation.
- API Support with Python.
Seamless Integration with Oscilloscope

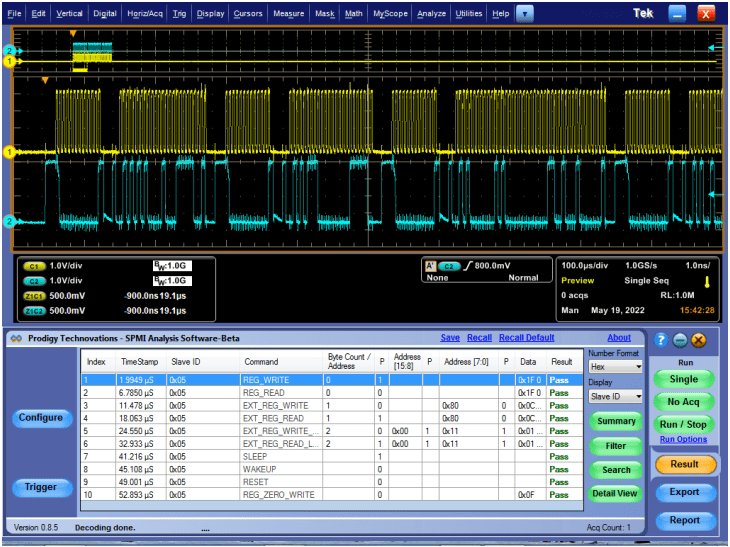

PGY-SPMI runs inside the Tektronix oscilloscopes and makes the electrical measurements, and displays the decoded data in a bus diagram, a table, and links the decoded data to electrical signal in the bus diagram.
Reference Level Setup
PGY-SPMI-EV is not just for standard electrical compliance testing, you can also vary the limits and test your device with custom limits. The intuitive limits and reference level setup allow you to configure the limits and reference levels for your custom testing needs. This enables you to test your device beyond the specification and characterize it.
In Detail View, engineers can view the analog waveform, details of electrical measurements in single view. If there is any failure in electrical measurement, designers can quickly correlate with the analog waveforms. User can select any row in the detail view; corresponding analog waveform will be zoomed and displayed. In the same row, engineers can view all the electrical measurements corresponding to the selected row. Utility features such as zoom, cursors, and markers make custom measurement while debugging.
Powerful SPMI Protocol Aware Hardware Based Real-Time Trigger
Simple, easy-to-use SPMI protocol-aware trigger feature allows engineers to capture SPMI signals at specific event in SPMI interface.
Select any of the live channels Ch1 to CH4 as trigger source and set the trigger pattern. The trigger can set to full speed, half speed or any custom data rate. SPMI provides the flexibility to select a combination of any one of the sixteen slave IDs, any command and command dependent parameters such as Byte count, Address, or Data.
Symbol table for Slave ID

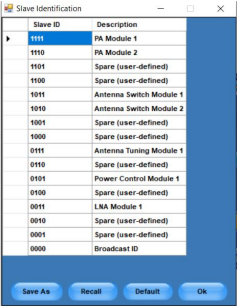

PGY-SPMI Software provides the flexibility to view the decoded data in symbol table. SPMI specification documents provide guidelines to describe the Slave IDs. PGY-SPMI software has the default slave ID table. However, the user can edit the default table and apply the custom described slave IDs for easy analysis of protocol activities.
Protocol Summary provides a quick result view of protocol analysis of SPMI signals. This view lists pass/fail status of SSC, parity bit in command, address and data in the acquired data. This helps in locating the cause of SPMI Protocol packet failure.
It is extremely challenging to view information of interest while there are hundreds of protocol transactions taking place between various devices. These problems compound during protocol analysis of a long record length. PGY-SPMI software solves this problem using the filter feature. By filtering information for Slave ID or specific command, or parity error type, user can view only specific data of interest. Filters provide filtering of information using individual packet content or combination of packet contents.

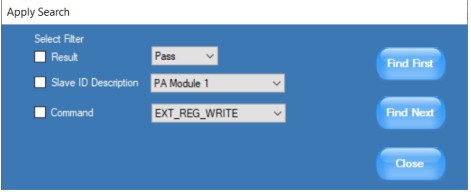

During protocol analysis, users tend to capture a large amount data capture any non-repeatable event. It is also extremely difficult locate the SPMI packet of interest. SPMI Software’s Search filter in is able to quickly locate the required Slave ID or command or Combination of both.
